RanchMaster includes a complete weather station solution that provides accurate, continuous, real-time recording of temperature, relative humidity, wind, rain, solar radiation, and leaf wetness. Its built-in analytical features include disease indices, degree days, chill portions, and wet bulb. The Weather & Climate module is typically combined with the Alerting module to immediately notify growers of dangerous weather conditions.

FEATURES

  • weatherstation_viewBroad sensor selection
    •  Temperature, Relative Humidity, Wind Speed and Direction, Rainfall, Solar Radiation, UV, Leaf Wetness
  • Connected to base station or nodes
  • Continuous, real-time transmission of all data to online software
  • Data viewed as time graph or printed as reports
  • Disease indices include Powdery Mildew and Botrytis
  • Other calculations include Degree Days, Chill Hours, Chill Portions, Wet Bulb

BENEFITS

  • Reduce water use by irrigating according to climate
  • Accurately detect risks including frost and excessive heat
  • Reduce spraying by monitoring local disease indices
  • Improve crop selection long term by knowing micro-climate

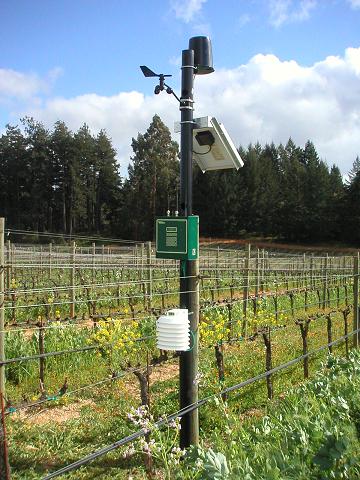

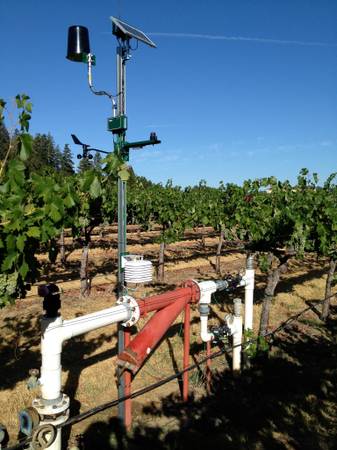

Many properties that require weather data have traditionally relied on expensive, semi-automated single purpose solutions. Ranch Systems offers a wireless base station that can serve as a full-function weather station while still acting as a central coordinator for other wireless nodes on the property.  This solution provides core weather system data while offering the flexibility to add other modular solutions as needed, like microclimate monitoring, frost alerting, or irrigation measurement and control. Data gathered by the base station and sensors is transmitted to a secure datacenter for real-time viewing through Internet browsing software, on a PC, tablet or smartphone.  Charts and graphs allow comparison of data trends, and tie in to other deployed RanchMaster  solutions.
soil

RanchMaster offers an effective and reliable way to measure soil moisture continuously and in real-time at multiple levels and at several points in a property. The data can be used to schedule irrigation in conjunction with Irrigation Control and/or trigger alerts on critical moisture levels. It can be viewed as time graph or color-coded soil water profile. The data can also be combined with climate and water resource information to create even more intelligent basis for irrigation and alerting.

FEATURES

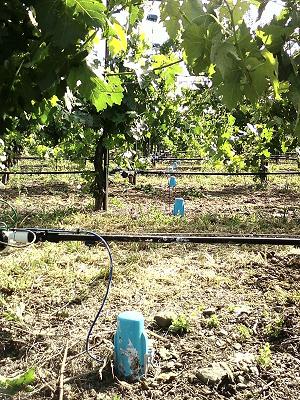

6soilprobes
  • Soil moisture probes connected to RanchMaster wireless telemetry nodes
  • Single or multi-level soil moisture probes installed in soil
    • Support for a wide range of 3rd party soil moisture probes
  • Connected to either base station or nodes
  • Continuous, real-time transmission of soil moisture to online RanchMaster software
  • Data viewed as traditional time graph or color-code soil water profile

BENEFITS

  • Reduce water use by knowing water availability
  • Improve crop quality by safely controlling plant stress
  • Effectively and safely develop larger root system
  • Reduce labor and service cost of manual collection
Whether the focus is on deficit irrigation or water conservation, accurate soil moisture measurement is essential to crop production and quality. Furthermore, soil moisture can vary widely across and within properties based on soil type and terrain, requiring multiple measurement points to ensure accuracy. RanchMaster  offers an effective and reliable way to measure soil moisture at multiple levels and at several points in a property, and to compare that data with other relevant information such as climate and water availability. The system can be used for measurement and monitoring only, or can be combined with our irrigation control to activate valves for automatic irrigation scheduling. Data gathered by the base station, nodes, and sensors is transmitted to a secure  datacenter for real-time viewing using any Internet enabled device and the on-line RanchMaster software. Charts and graphs allow comparison within and across zones and include a unique “Soil Moisture Profiler” showing a cross-section of the actual soil profile over time with color coding of the moisture levels.

SCREENSHOT: Example of the Soil Mositure Profiler showing over irrigation.

SoilProfile


  irrigation

Irrigation Valve Control

Irrigating multiple, large, and/or remote properties can be very labor intensive.  In addition, it is often difficult to know exactly when (or if) valves were activated and whether or not the desired duration or amount of water distribution was achieved.  Furthermore, in instances where immediate response is required, manual valve activation may not be an option.

FEATURES

  • Schedule irrigation on-line from anywhere
  • Base station automatically controls valves

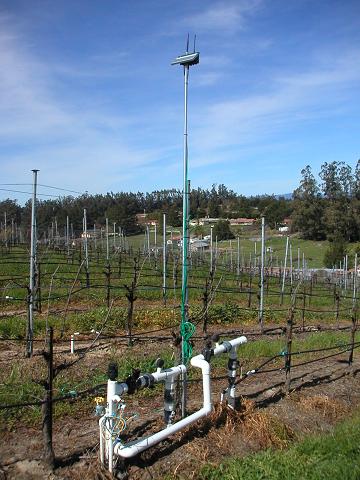

  • Wireless nodes nodes to reach remote manifolds
  • Flow sensors provide feedback
  • Alerts in case of deviations or faults

BENEFITS

  • Lower labor costs
  • Increase accuracy (e.g. smaller more frequent sets)
  • Reduce water use (e.g. by night irrigation)
Ranch Systems offers an effective and reliable way to address these challenges by managing the full cycle of irrigation, from valve activation through water flow measurement to soil moisture tracking.  The system can be used only for measurement and monitoring, or can be used to activate valves for remote irrigation control or irrigation scheduling. Data gathered by the base station, nodes, and sensors is transmitted to a secure datacenter for real-time viewing using any internet enabled devise and the RanchMaster on-line application.  Charts and graphs allow comparison of data trends, and are relatd to other deployed RanchMaster solutions.

Screen shot of irrigation scheduling (click to enlarge)   rs-irrsched2a

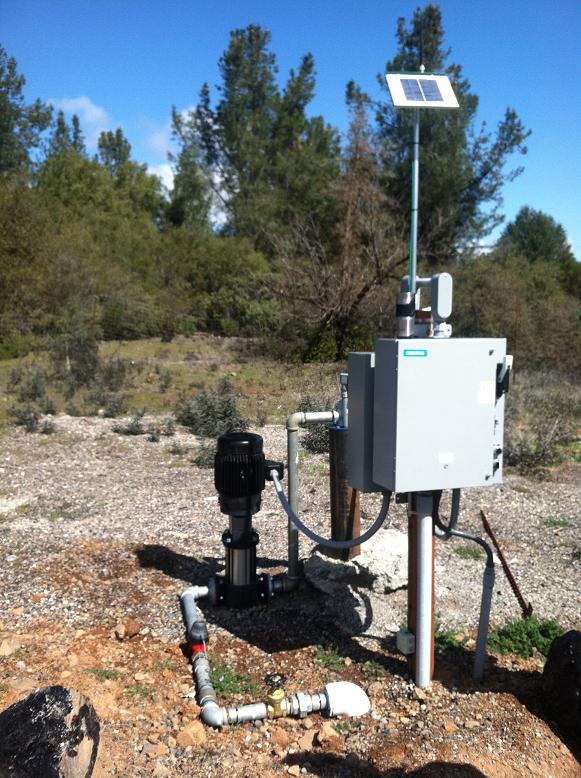

Pump Control

Features

Remote control of well pump
  • Control of a wide range of pumps from electric to large engine pumps (with Murphy Controller)
  • Closed loop monitoring of actual start with alerts on failures
  •  Remote access technology for diagnostics and re-configuration

Benefits

  • Save labor and travel costs associated with manual operation of engines and pumps
  • Save energy costs from unnecessary runtime and by running electric pumps off-peak
  • Prevent pump wear and damage from dry running
  • Predict and optimize refueling times by knowing exact run-times
  • Auto-start based on critical conditions (frost, low-water, soil moisture)
Ranch Systems products are ideal for remote monitoring and control of pumps, whether electric or engine-driven. The solutions range from simple on-off monitoring using a pressure transducer to complete monitoring of engine statistics and start/stop of engine. The most advanced control is enabled by the partnership between Ranch Systems and Murphy Corporation and Macquarrie Corporation in Australia, allowing any suitable Murphy-controlled engine to be monitored and controlled on-line.

Engine Monitoring & Control

FEATURES

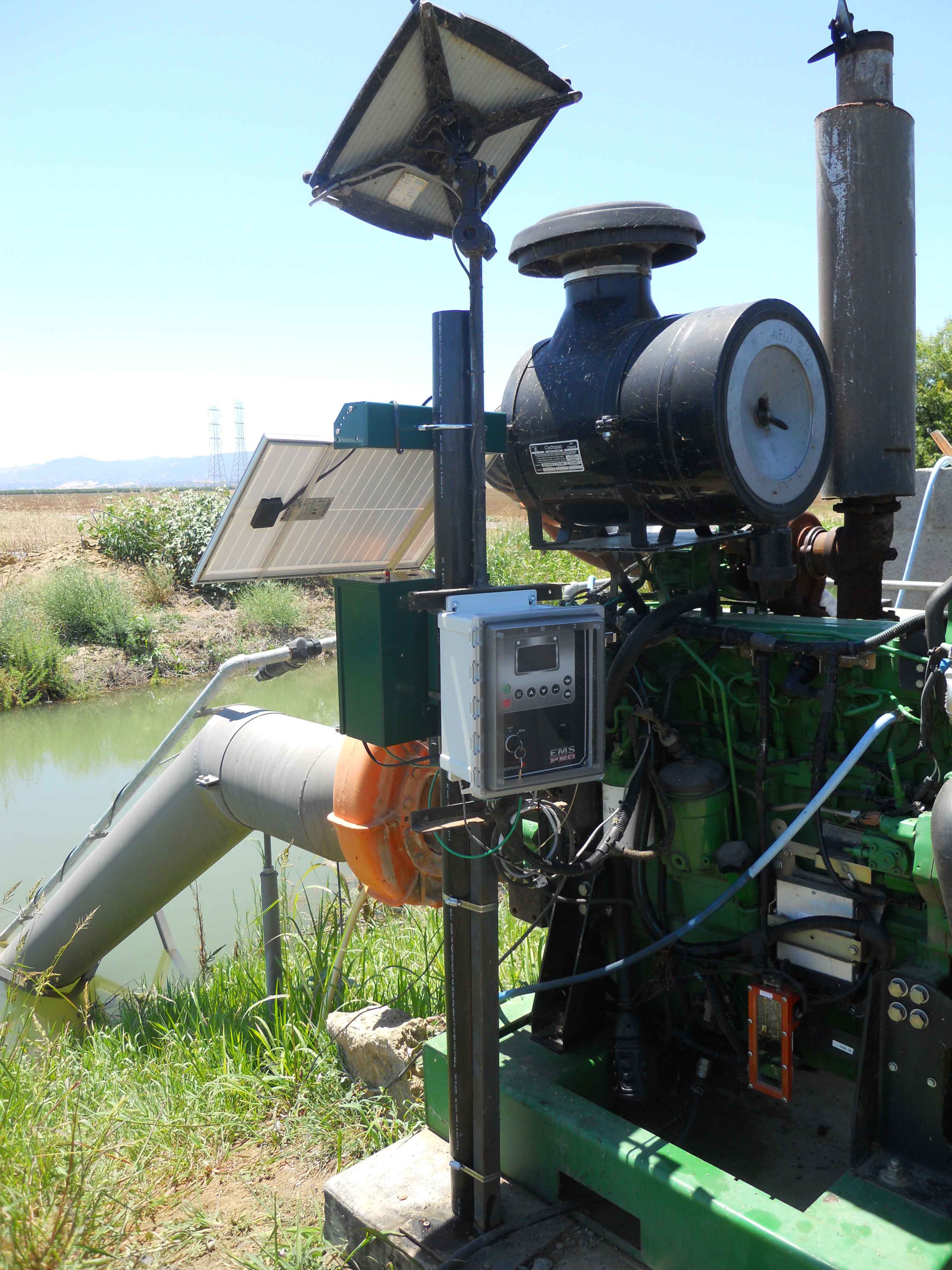

Murphy-pump
  • Real-time  telemetry using cellular network
  • Engine status current within 5-10 minutes
  • Engine start/stop delay less than 5 secs (pre-programmed) or less than 1 minute (ad-hoc)
  • Remote throttling
  • Alerting capability via text messaging or phone calls (e.g. engine stops unexpectedly)
  • Ability to program rules for auto start/stop based on other sensors (e.g.  water level or temperature) and critical conditions (e.g. frost, low-water, soil moisture)
  • Ability to integrate engine control into complete irrigation  automation solution
  • Option to add the Ranch Systems still-image camera option for visual pump monitoring
  • User-defined reports in CSV or PDF
BENEFITS
  • Save labor and travel costs associated with manual monitoring of engines
  • Save fuel costs from unnecessary runtime
  • Prevent pump wear and damage from dry running
  • Predict and optimize refueling times by knowing exact run-times

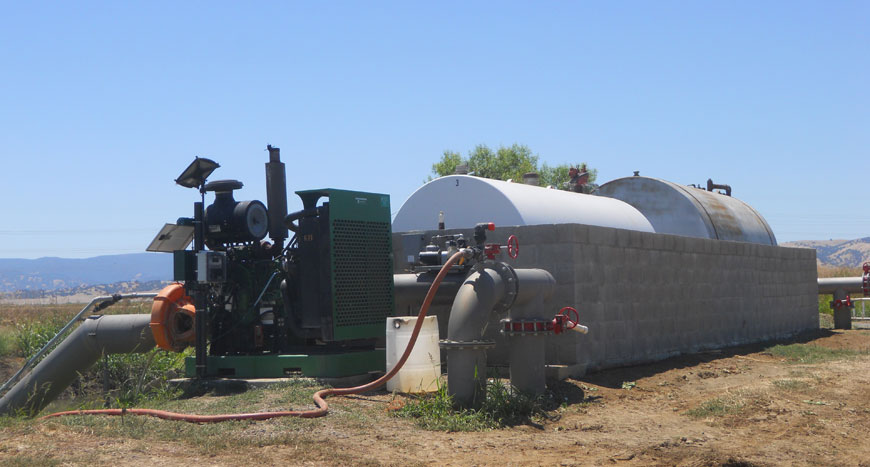

RanchMaster is capable of remote monitoring and controlling engine-driven equipment such as irrigation and mining pumps, generators or wind machines or any other engine-driven equipment. The solutions range from simple on-off monitoring using an oil pressure transducer to complete monitoring of engine statistics and start/stop of engine. The RanchMaseter RM210 or RS210 node unit is connected to the engine controller or transducers. This unit regularly samples key statistics and transmits back to the RanchMaster online software application. When the user decides to start or stop, or when indicated by a program defined online, the signal is transmitted back to the unit and then engine will follow the command, typically within seconds. The connectivity can be via cellular/mobile phone system or by direct internet connection. Simple remote engine monitoring (no control) The most economical solution allows only monitoring; no remote control is provided. An RS210 CELLunit is placed near or on the engine and a pressure transducer is attached to the pressure line, typically using a T near an existing pressure gauge.  The RS210-CELL will upload data to the online application every 30 minutes, providing detailed historic data on engine run time. This can be used to indirectly determine such measures as gallons/kilolitres of irrigation water delivered, verification of frost protection equipment function and even the amount of fuel consumed. Advanced engine monitoring and control (via Murphy Controller) This is the most advanced solution provided both real-time monitoring and remote control. In this case, a Murhpy EMS-PRO controller  is required. The Murphy controller is connected to an RM210 base station unit using a special cable providing both power and RS-485 network communications. Cellular/mobile coverage is required, or optionally a nearby direct Internet connection (e.g. WiFi). The RM210 will pull current engine data at regular intervals (typically 5 or 15 minutes) and deliver this to the online application via the cellular/mobile network. Whenever the user decides to turn engine on/off this is a few simply clicks in the online application. Control signals are then sent via cellular/mobile network to the RM210 and immediately after the RM210 will send the signal via the RS485 connection to the Murphy controller. Control delay depends on cellular/mobile network, but is typically less than 1 minute.

SCREENSHOT: Typical time graph of key parameters (click to enlarge)

Murphy graph The following is typical data available online (depends on register map of Murphy controller used)
  • RPM
  • Engine temperature
  • Engine battery level
  • Oil pressure
  • Engine running hours
  • Miscellaneous engine status flags
  • Discharge pressure (pump)
  • In-take level indicators (such as reservoir level)
  The remote control can be ad-hoc, meaning the user decides to turn on or off and clicks a button in the online application. However, the control can also be programmed as part of an irrigation schedule and there by happen in a pre-determined fashion without requiring the user to go online. Finally, control could also happen as result of a rule reacting to input from another sensor in a Ranch Systems installation, such as a temperature sensor indicating frost or a level sensor indicating high or low water level.  [video_lightbox_youtube video_id="YXV_J9BoJqU" width="640" height="480" anchor="CASE STUDY: Remote monitoring and control of engine used for water pumping Shannon Ranch "]
tank tankfilter

RanchMaster can monitor the level of tanks, ponds, wells and many other types of liquid storage including fuel and fertilizer. Fluid level data is gathered by either submersible pressure sensors or ultra-sonic sensors located above the liquid. The software calculates volume based on tank/pond geometry Charts and graphs allow comparison over time. Alerts can be set to any number of conditions; it is even possible to have alerts that automatically activate a shutoff valve or sound an alarm horn.

FEATURES

  • Support for submersible pressure-based water level sensors and ultrasonic non-contact fluid level sensors
  • Real-time status of level and gallons currently in each tank monitored
  • 1-click graphs show level or gallons over time
  • Ability to define alerts  when levels fall outside criterias
  • Historical reports in PDF format

BENEFITS

  • Reduce risk and cost of outages
  • Improve planning of delivery truck schedules
  • Prevent overfills/flows
  • Track water usage
RanchMaster  provides real-time, on-line tank monitoring optimized for use in remote locations and tough environmental conditions. Cost-effective options are available for both single tanks and multiple tank configurations. Typical applications include monitoring the levels of water tanks, fertilizer tanks, ponds, sulphuric acid tanks, water wells.

The software is designed for ease-of-use and allows tracking of tank level using just a web browser from anywhere in the world. Furthermore, alert triggers can be configured to make automatic phone calls or send text messages to key personnel when certain critical conditions arise.

Click on the photos or screenshots below to enlarge

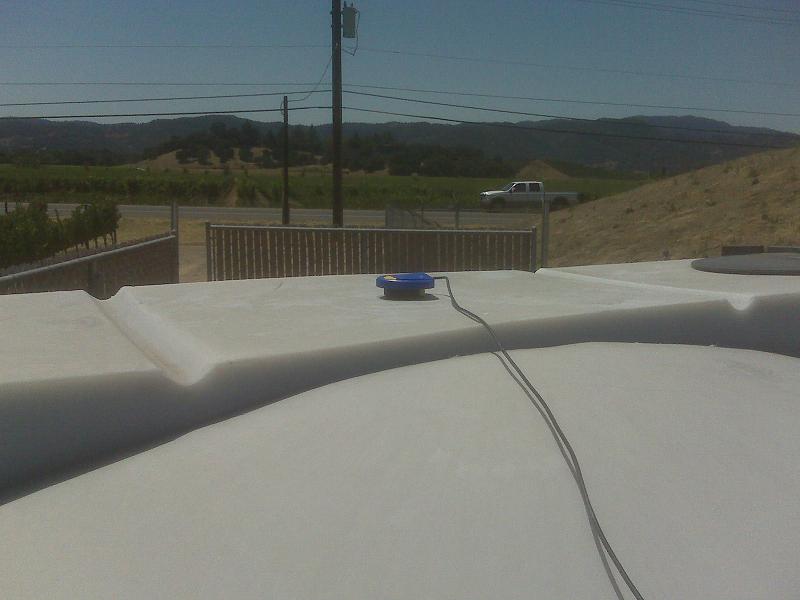

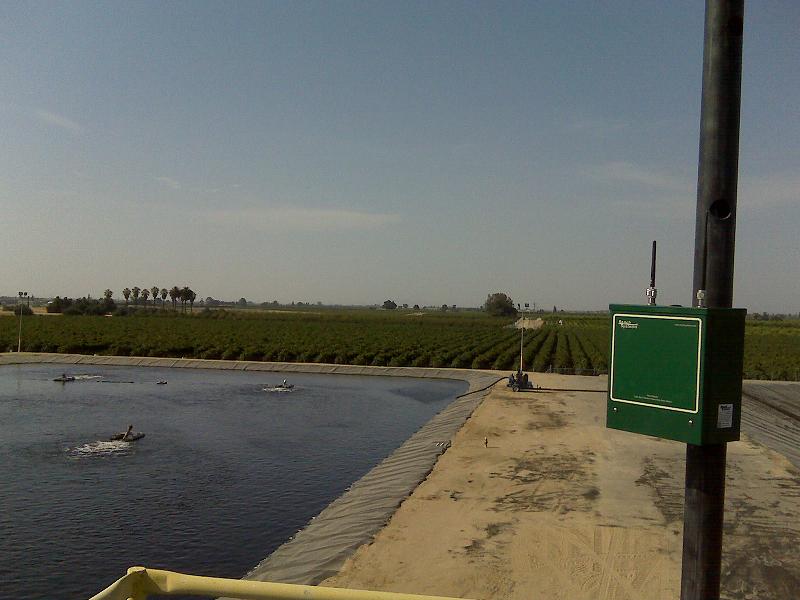

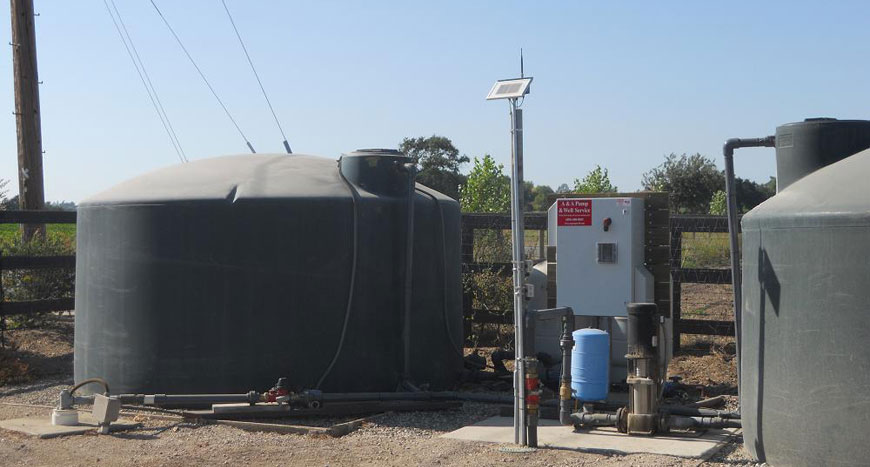

pondsultra tank-fertigation

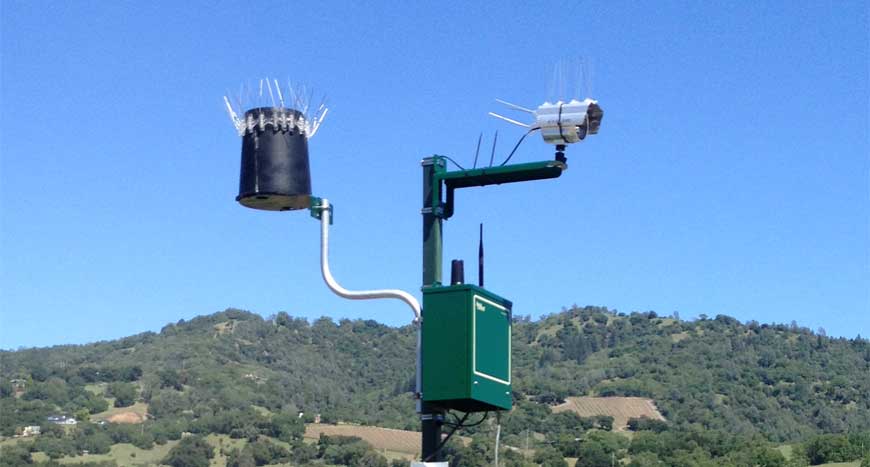

remote Camera_low res

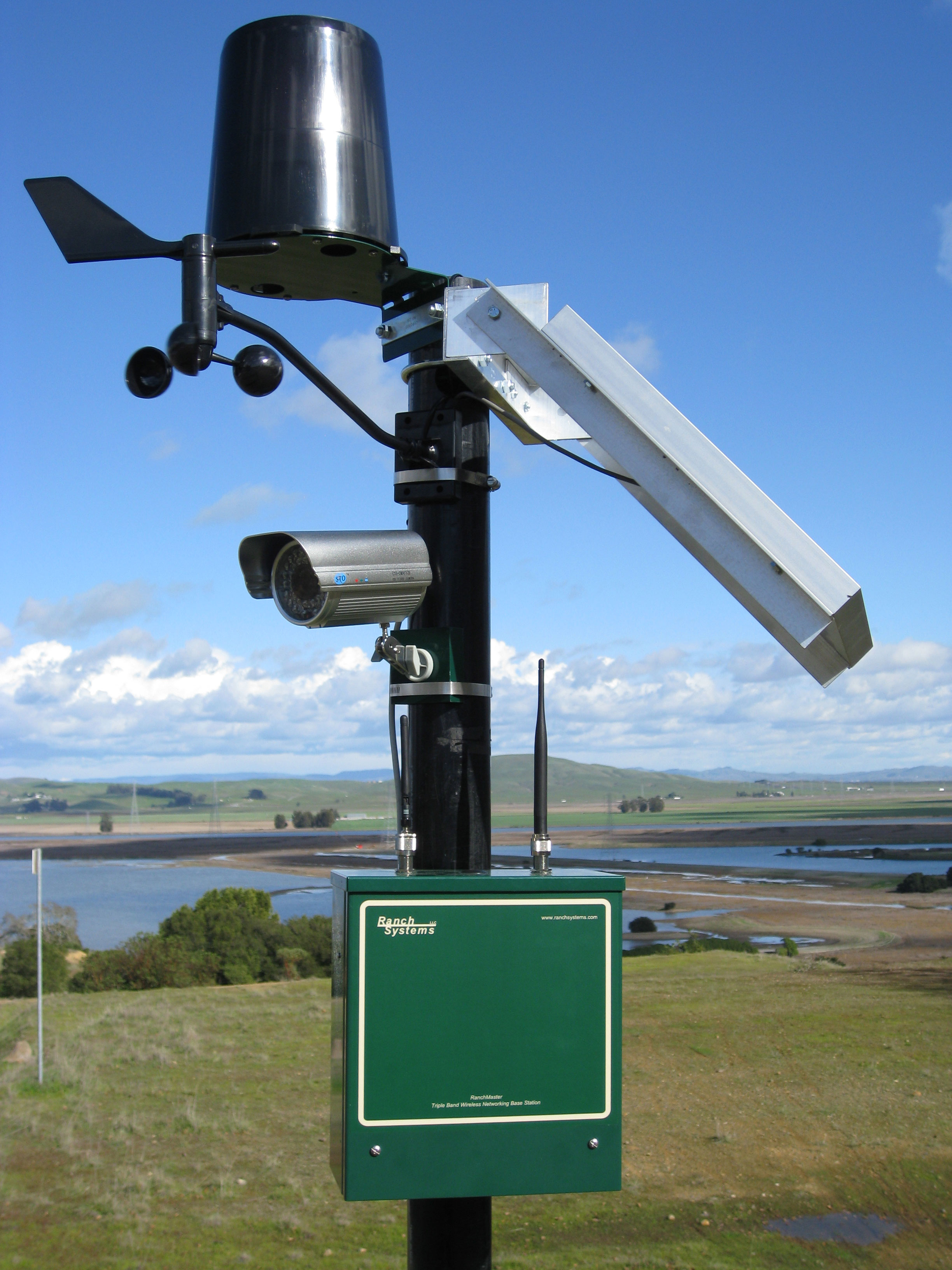

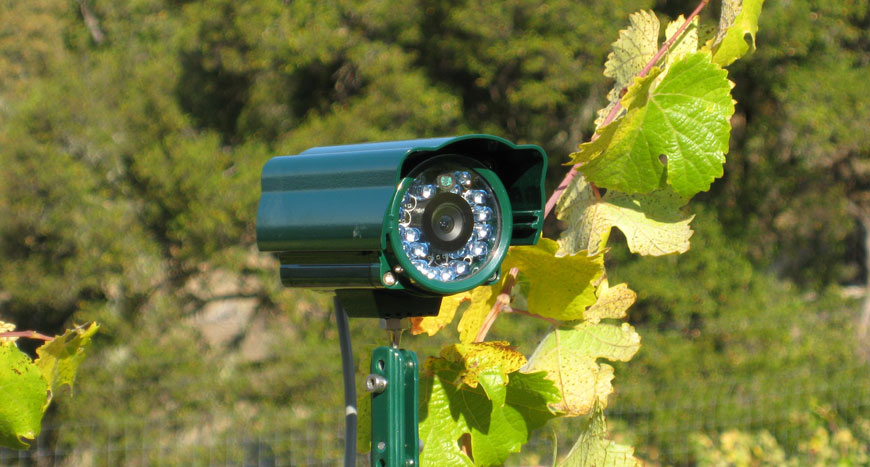

RanchMaster can also remote observation capabilities. As opposed to the common “web-cams” which continuously stream video, RanchMaster Remote Cameras record still-images at intervals of 15 minutes or 1 hour and economically transmit them to the online software where they can be viewed in real-time or historically. Cameras can also be activated by a sensory event like a motion detector being triggered. Also, a feed of images can be sent to a grower’s website for marketing purposes.

FEATURES

  • Still-image camera attached to base stations
  • Takes color photo on motion, keypad entry or fixed time intervals
  • Software maintain calendar of images and access events over time
  • Image-content feature creates timeseries of data showing patterns of e.g. fog
  • Images alert to email/smartphone when image taken by motion detect or keypad

BENEFITS

  • Track and record-keep visual crop development over time
  • Track field work from remote location
  • Deter theft, increase security
  • Monitor special weather conditions like visibility and fog
  • Improve marketing by integrating image stream into own website
Remote camera capability is an add-on to any RanchMaster base station and provides still-image recording in remote locations where normal online camera solutions are unavailable or impractical. It can either be used for simple monitoring by programming it to take images every 15 min or hour, or it can be combined with motion detector or access keypad for fully-fledged access control solution. Images are immediately uploaded to the on-line web application, where they can be browsed by authorized users. The camera also has a short-range infra-red night illumination. Images are presented online in a calendar view, making it easy to pin point the general activity on a site at certain time. It is ideal for progress monitoring of crop growth or construction projects, or for monitoring traffic, livestock and a variety of other objects. Apart from viewing images via the Ranch Systems applications, an image link can be inserted into the customer's own website for presenting visitors with a live snapshot of the current activity at a site. The online software also allows the creation of time-lapse videos, pulling 1 image per day into a streaming video. This is a powerful tool for visualizing historic activity after the fact, such as canopy growth, project history etc. The RanchCam physical product consists of a DVR (Digital Video Recorder) circuit board that is mounted inside the RM210 unit, and one outdoor rated camera and mounting bracket. When ordering RanchCam along with an RM210 the DVR will already be mounted and you simply mount the camera and plug in the power and coax connector into the RM210 station.
alerting

The Alerting module enables early detection of problem conditions. Alert conditions and recipients are defined by growers and can be based on any type of collected data. Rules for triggering alerts can be as simple as “<38” for frost alert or complex calculated formulas. Delivery can be by email, text message or phone. Alerts can be configured to repeatedly call multiple recipients until at least one recipient acknowledges the alert.

FEATURES


frozengrapes
No frost alert
PhoneScreens-Alerts
  • End-user defined alerts like "temperature<38"
  • Also ability to define more complex formula for alert condition
  • Alerts delivered by Email, Text Messaging, or Voice Call
  • Alert text is user definable
  • Multiple recipients supported
  • Online site tracks confirmations received from recipients

BENEFITS

  • Reduce crop losses from frost by quickly responding
  • Mitigate effects of irrigation system failures by early detection
  • Prevent run-out and over-fills of tanks by alerting
Ranch Systems software provides the capability for users to set custom alerts, for things like frost, heat, low water levels, or other parameters. One of the most critical risks to vineyards and other agribusiness is frost, but ranch managers also face the risk of heat extremes that threaten crops and field workers, risk of breakdown of irrigation systems, and other problems.  Common to these conditions is the need for quick action to mitigate the risk.  Minutes can mean millions. Ranch Systems addresses these challenges with an alert system that notifies you – using voice message, text messages or email – of any of wide range of critical conditions in the field that require prompt attention. Data is collected by sensors plugged directly into a base station or to nodes deployed miles around. Ranch managers control which specific conditions will trigger an alert and can set it up to alert employees with customizable messages.  With online service, the voice messaging system is phonetically driven, so messages can be sent in any language.  The system can be configured to repeatedly call multiple recipients until at least one recipient acknowledges the alert, and will note the alert recipient and time the alert was acknowledged. For dedicated alerting applications, we also offer the inexpensive RS210-CELL product providing ultra-fast alerting direct to any phone line or by text messages, using its own built-in cellular modem. SCREENSHOT: Easy alert configuration (click to enlarge) Alerts
