Telemetry units
Three nodes, one platform
Each unit reads sensors, logs data, and connects to myRanch — the difference is how much they control and how far they reach.

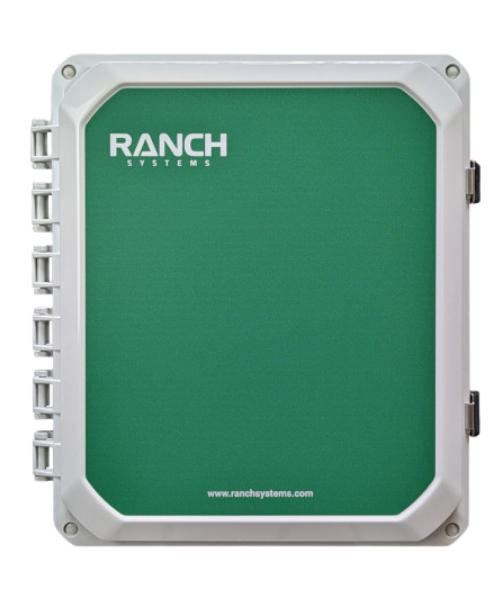

RM400
The flagship controller — telemetry, data logging, and valve control for up to 48 valves in one unit.
The RM400 is an advanced telemetry node, data logger, and valve controller capable of reading data from a variety of sensors and uploading it to the Ranch Cloud™ platform. It's built to be the backbone of your monitoring and control system, with a built-in display and keypad for in-field configuration, valve control, and data readout — plus advanced configuration over a cabled PC connection or the myRanch™ app.
RM400 can control up to 48 valves* and accepts multiple sensor input types, including sensors connected via the RS10 Bluetooth® Transmitter. In the myRanch app, build fully automated irrigation programs — optimized for the shortest run time and dynamically adjusted for real-time conditions.
Optional Expansion
- Cellular modem with AGPS
- Up to 48 solenoid control outputs via stackable 12-port expansion boards
- Sensor input expansion board

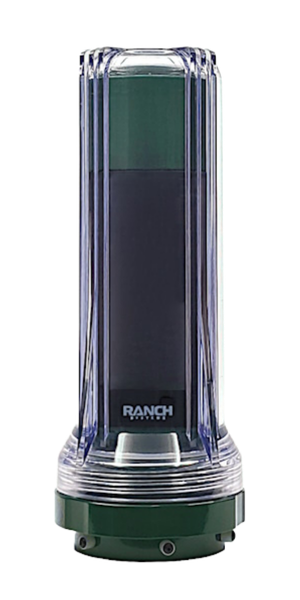

RS130
A self-contained, solar-powered field node for a single site — soil moisture, weather, tanks, or pumps.
The RS130 is an advanced telemetry node and data logger capable of reading data from a variety of sensors and uploading it to the Ranch Cloud™ platform. The unit is focused on ease of use, with a built-in OLED display and infrared remote control for in-field configuration and data read-out.
RS130 doesn't have built-in Bluetooth®, so it pairs with the RS10 Bluetooth® Receiver when you want to add wireless sensors via the RS10 Transmitter.
See more →See RS130 Setups & Bundles →

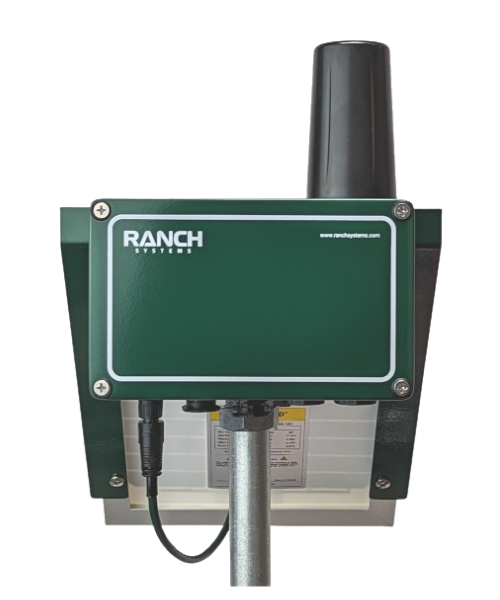

RS330
Standalone over cellular, or linked into a RanchMesh™ network for large or cellular-poor properties.
The RS330 is an advanced telemetry node, data logger, and equipment controller capable of reading data from a variety of sensors and uploading it to the Ranch Cloud™ platform.
RS330 can function as a standalone unit or as part of a multi-node RanchMesh™ network. The standalone unit includes a cellular modem that communicates directly with Ranch Cloud. A RanchMesh network is the better fit for areas with limited cellular coverage, or for large installations spanning multiple locations — a base station communicates with Ranch Cloud and the local mesh, while router and end nodes relay through it to extend range past line-of-sight or terrain limits.
Optional Expansion
- DC latching relay expansion board (up to 4 control outputs)
- Sensor input expansion board (up to 4 inputs)
- Serial communications expansion board (RS-232 + RS-485/SDI-12)
- RS10 Bluetooth® Receiver, for use with the RS10 Transmitter
*Number of supported valves and exact port counts vary by configuration. Contact sales for a configuration matched to your site.
Expansion units
Go wireless with RS10
Not every sensor needs a cable run — connect wirelessly, then add a receiver to any telemetry unit without built-in Bluetooth®.
RS10
A compact, solar-powered Bluetooth® transmitter that connects to SDI-12 sensors and relays data up to 1,000 ft.
The RS10 is a compact, self-contained sensor interface using Bluetooth® long-range, ultra-low-power wireless technology. With RS10, equipment installation is no longer constrained by cabling — place sensors where needed and connect them wirelessly to a host unit up to 1,000 ft away (typically up to 350 ft with trees or foliage in the way). It connects directly to RM400 (built-in Bluetooth®), or to RS130 and RS330 via the RS10 Receiver.
RS10 works two ways. As a telemetry transmitter, it feeds sensor data to a host unit (RM400, RS130, or RS330) for real-time upload to Ranch Cloud™. As a standalone data logger — no host unit or cellular connection required — it stores readings locally and you pull data on-site via Bluetooth®, sold and configured under the RanchDL brand.
See more →See RS10 as a standalone Data Logger →

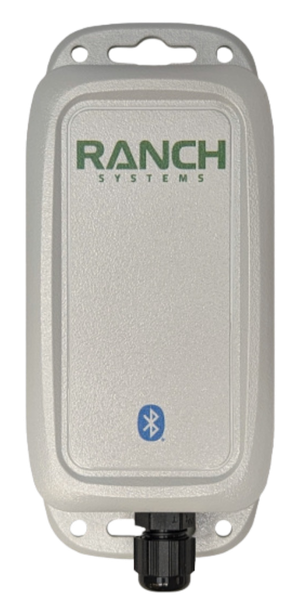

RS10 Receiver
Adds Bluetooth® connectivity to any telemetry unit that doesn't have it built in, powered by the host unit.
The RS10 Bluetooth® Receiver is a compact, self-contained external modem for telemetry units that don't have built-in Bluetooth®. Powered by the host telemetry unit, it lets that unit sample sensors connected via the RS10 Bluetooth® Transmitter & Data Logger — giving growers more options for upgrading or expanding an installation with wireless sensor connectivity.
RM400 has Bluetooth® built in and doesn't need a receiver. RS130 and RS330 both support the RS10 Receiver to add that connectivity.
