Ranch Systems Hardware

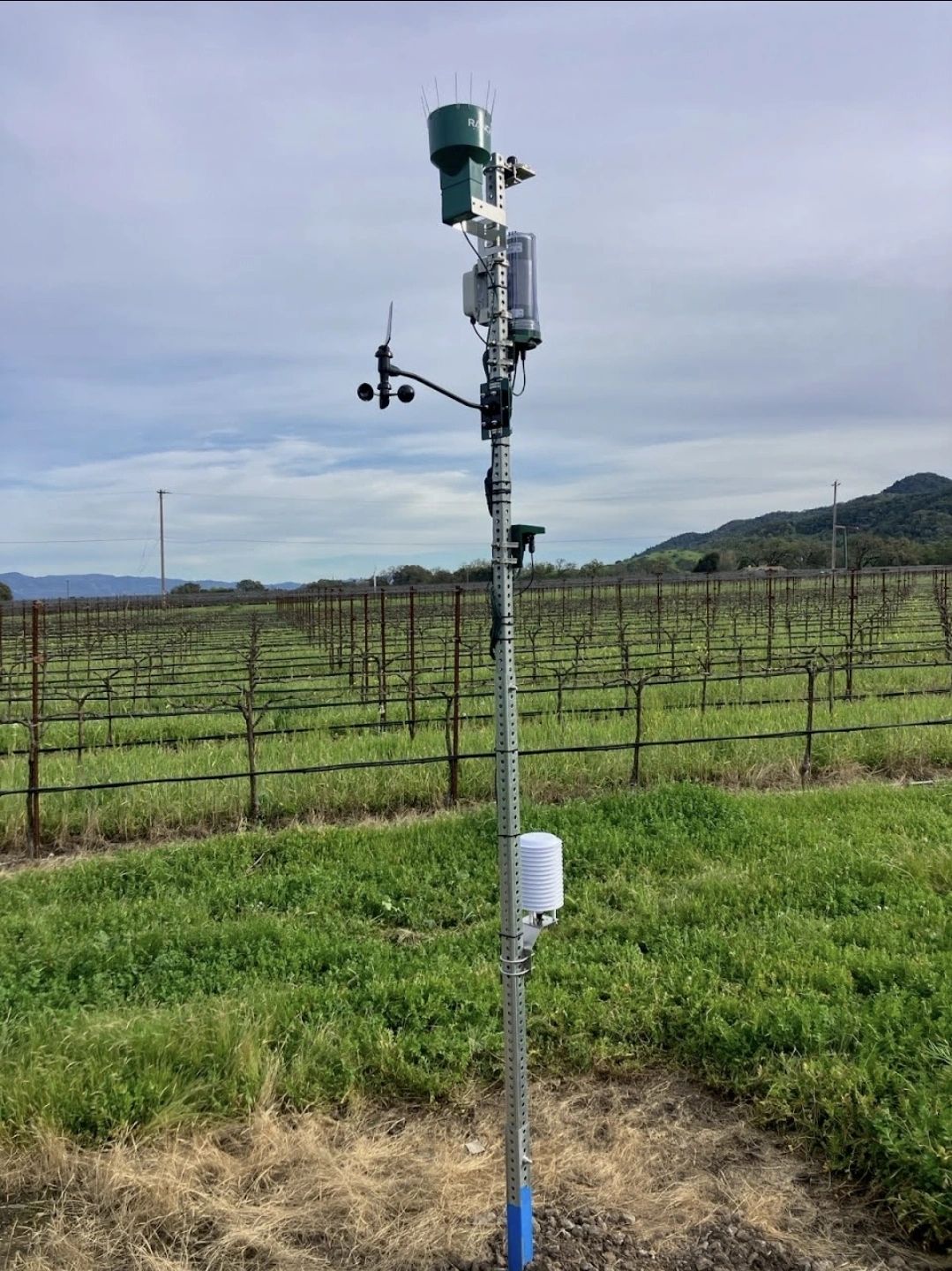

A complete, field-hardened weather station built for agricultural monitoring. Measures temperature, humidity, barometric pressure, wind speed & direction, rainfall, and solar radiation — transmitting continuously to your Ranch Systems account.
The professional weather station records everything a grower needs to make data-driven irrigation and spray decisions — all from a single pole-mounted unit that connects directly to any RS telemetry node.
Specifications
| Telemetry port | I²C compatible |
| Enclosure | PETG cover w/ powder-coated steel housing |
| Cable length | 10 ft (3 m) |
| Connector | SwitchCraft/Conxall Con-X, 6-pin plug |
| Operating temperature | -40°F to 185°F (-40°C to 85°C) |
| Sensor type | Solid state magnetic sensor |
| Resolution | 1 mph (1.6 km/hr) |
| Range | 1 to 200 mph (1 to 322 km/h) |
| Accuracy | ±2 mph (3.2 km/h) |
| Wind cups | Polycarbonate |
| Anemometer arm | Black-anodized aluminum |
| Sensor type | Wind vane with potentiometer |
| Resolution | 1° |
| Range | 0 to 360° |
| Accuracy | ±5% |
| Wind vane & control head | UV-resistant ABS |
| Sensor type | Tipping spoon |
| Resolution | 0.01 in. (0.25 mm) per tip |
| Accuracy | ±2% |
| Collector | ASA molded thermoplastic |
| Sensor type | Digital temperature |
| Resolution | 1° |
| Range | -40°F to 150°F (-40°C to 65.6°C) |
| Accuracy | ±0.1°C |
| Sensor type | Digital capacitance |
| Resolution | 0.5% |
| Range | 0 to 100% |
| Accuracy | ±1.5% |
| Sensor type | Piezo-resistive |
| Resolution | 0.13 mbar |
| Range | 10 to 1100 mbar |
| Accuracy | ±1.5 mbar (750-1100 mbar @ 25°C) |
| Sensor type | Capacitance |
| Signal output | 320 to 1250 mV (reading relates to moisture state) |
| Sensor type | Silicon-cell photodiode |
| Field of view | 180° |
| Spectral range | 360 to 1120 nm |
| Auxiliary input | 0 to 3 VDC input |
| Connection type | SwitchCraft/Conxall Con-X, 6-pin socket |
